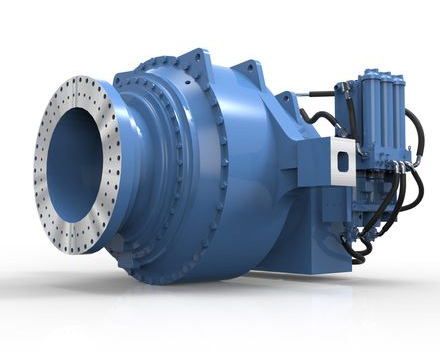

Main Gearboxes

Description

NGC supplies multi-MW wind gearboxes in standard as well as customized designs for various working conditions. Whether you need small-batches or high-volumes or production according to specifications - NGC realizes them all.

In the gearbox design process, the actual working conditions of wind turbines are well considered. All parts of the gearbox are accurately calculated and analyzed based on the load spectrum. To simulate the actual conditions, bench performance tests including an accelerated life test (HALT) and low-temperature tests (CCV) amongst others are carefully carried out.

Our products are featured by optimized torque density, high capacity, high efficiency, and high reliability.

NGC's gearbox solutions are used by well known turbine manufacturers domestic and aboard.



Technical Data

Patform [MW] 1.5 2.0 3.0 5.0 6.0
Power Range [kW] 1,660 2,160 - 2,350 3,300 5,500 6,600
Ratio 79.9 - 119.2 72.3 - 131.6 82,3 - 140.6 93.34 119.2
Nominal Input Torque [kNm] 982 1,560 2,500 4,470 6,240
Rotor Baldes Diameter [m] 70 - 89 80 - 115 110 - 120 130 155
Driving Arrangement 1 planetary stage (NGW) + 2 parallel or 2 planetary stages (NGW) + 1 parallel 1 planetaty stage (NGW) + 2 parallel 2 planetaty stages (NGW) + 1 parallel 2 planetaty stages (NGW) + 1 parallel 2 planetaty stages (NGW) + 1 parallel

Advantages

  • Induction hardened ring gears
  • High reliability and efficiency
  • From standardized to individually designed gearboxes

Applications

  • Onshore & offshore
  • Low & high altitude areas (> 1,000 m)
  • Low & high temperature environments (-40 °C to 50 °C )
